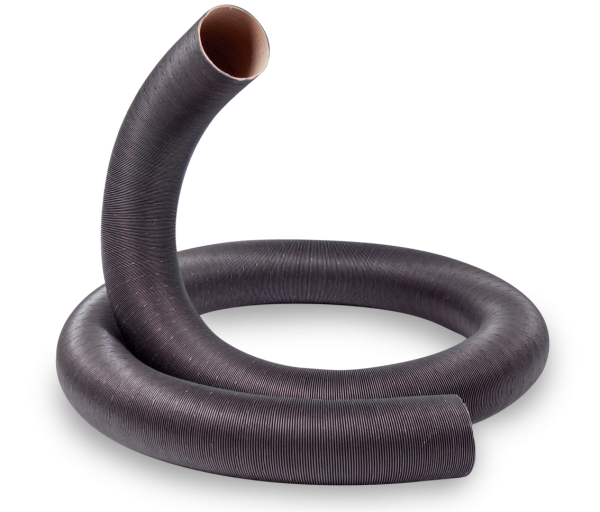

Westaflex-PAP
A flexible hose for distribution of hot and fresh air. The Westaflex-PAP is used in vehicles such as cars, trucks, trains and boats.
Description
Consists of different materials and is a flexible hose that is easy to use.
Area of use
Distribution of hot-and fresh air in vehicles, such as cars, trucks, trains and boats.
Material
Inner covering: Adhesive coated paper
Intermediate lining: Aluminium foil
Outer covering: Adhesive coated paper
Properties
Vibration and heat-resistant hose that can tolerate damp environments. Cut using a knife.
Temperature range
+130°C
Dimensions
See table below, other lengths on request.
Dimensions table
| Internal diameter (mm) | Standard length (m) | Internal diameter (mm) | Standard Length (m) |
| 30 | 20 | 60 | 20 |
| 32 | 20 | 65,8 | 20 |
| 35 | 20 | 67 | 20 |
| 38 | 20 | 70 | 20 |
| 40 | 20 | 75 | 20 |
| 45 | 20 | 80 | 20 |
| 50 | 20 | 90 | 20 |
| 52 | 20 | 100 | 20 |
| 55 | 20 | 120 | 20 |
