Combidec 2300
Description

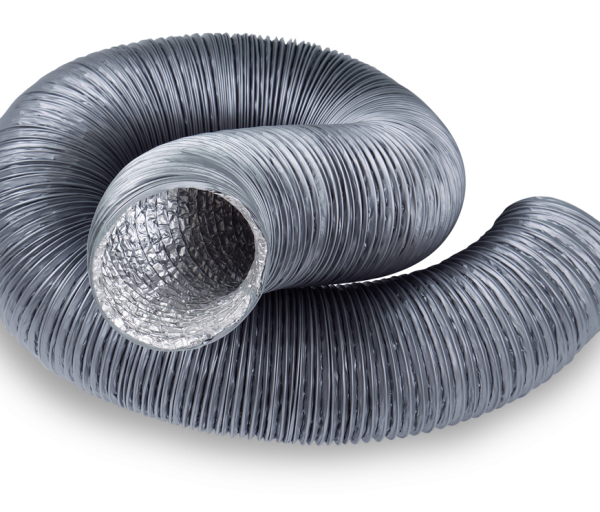

Flexible ventilation hose that easily can be installed on both round and oval hoses.
Area of use
Type approved connector between the stove fan or stove hood and fixed installation extractor fan duct for domestic kitchens or pantries.
Also approved for ventilation ducts for connection to supply and exhaust air ducts in a detached house and fire cells < or equal to 200m² where no fire hazard operations are carried out.
Material
Aluminium/polyester laminated hose with outer PVC sleeve.
Properties
Flexible and adaptable hose.
Temperature range
-30°C – +140°C
Dimensions
Standard length 6m
Diameter 80-315mm
See dimensions or contact us for further information.
Bend radius
Min 0.54 X diameter
Fire classification
Fire restistant material
Approval
Type approval certificate: 0025.
Dimensions Table
| Internal dimension (mm) | Standard length (m) |
| 80 | 6 |
| 100 | 6 |
| 125 | 6 |
| 160 | 6 |
| 200 | 6 |
| 250 | 6 |
| 315 | 6 |
