Inox-D
Description

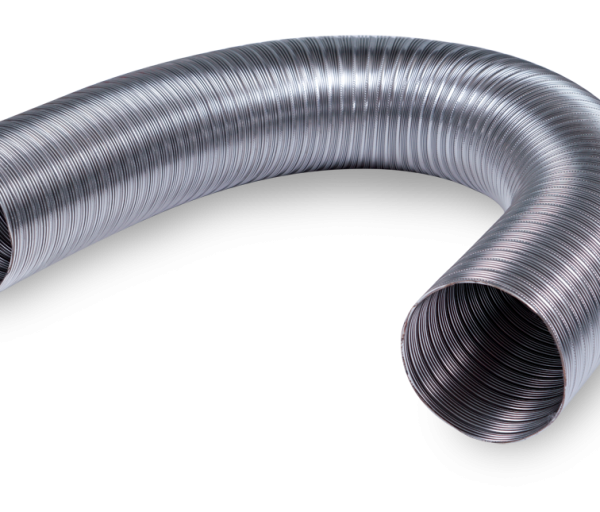

Two layers of stainless steel strips that corrugate and fold together.
Area of use
Liners for chimneys when renovating or where one wants to maintain the area. For dry operation.
Material
Aisi 316L (4404 in other standards).
Properties
Strong high-quality hose. Good flexibility and low weight. Cutting is most easily done using a hacksaw.
Temperature range
+ 600°C
Dimensions
The hoses come in standard lengths according to the table below, but are also available in lengths to order. Maximum length is 30m. Inox double is available in round or oval versions. External dimensions can be obtained by adding +5mm and dimensions not in the table below are available on request.
Bend radius
Round version: 3-4 x diameter.
Oval version: The bend radius is restricted.
Approval
CE marked according to 1856-2.
Warranty
10 year warranty.
Accessories
See page with accessories.
Masonry connector, cover plate draw plug etc.
Dimensions table
| Internal diameter (mm) | Standard length (m) |
| 60 | 25 |
| 63 | 25 |
| 70 | 25 |
| 76 | 25 |
| 80 | 25 |
| 90 | 25 |
| 100 | 25 or 30 |
| 110 | 30 |
| 120 | 30 |
| 125 | 30 |
| 133 | 30 |
| 144 | 25 |
| 152 | 25 |
| 160 | 25 |
| 180 | 25 |
| 200 | 25 |
| 203 | To order |
| 228 | To order |
| 250 | To order |
