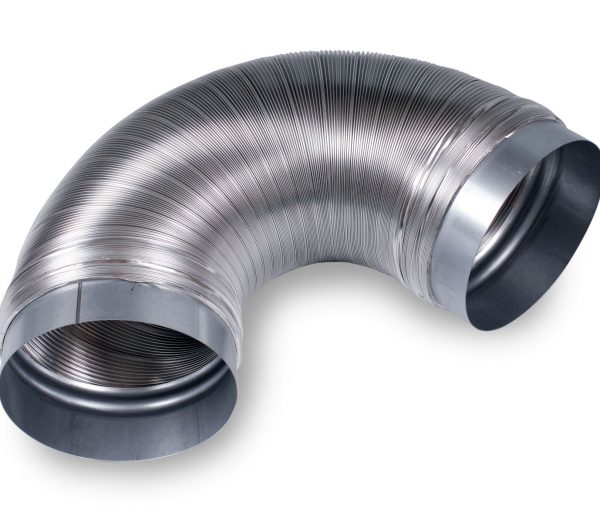

Compact MM

Compact MM is a flexible aluminium hose with metal sleeves for a practical connection between ventilation duct and air terminal. The product is approved and listed by the official Nordic Ecolabel.

A flexible and easy to use route hose as Compact.

Area of use
Connection between, for example, ventilation duct and air terminal.

Single layer of aluminium strips that corrugate and fold together, with factory installed end pieces.

Extendable to four times its compressed length, therefore it is very easy to adjust later.

Temperature range
Max +200C

Terminal version
Metal sleeves (standard version).
It is available with nipples (contact us for more information).

Bend radius
0,5 – 1 x diameter

Fire classification
Non-combustible material class A1.

Type approval: 0976

Ø80-315mm, Standard lengths for relevant diameter can be found below.

Dimensions table

Internal dimension (mm) Standard length (as extended)
80 1m,       1,5m,      3m
100 1m,       1,5m,      3m
125 1m,       1,5m,      3m
160 1m,       1,5m,      3m
200 1m,       1,5m,      3m
250 1m,       1,5m,      3m
315 1m,       1,5m,      3m
