Aku-Comp

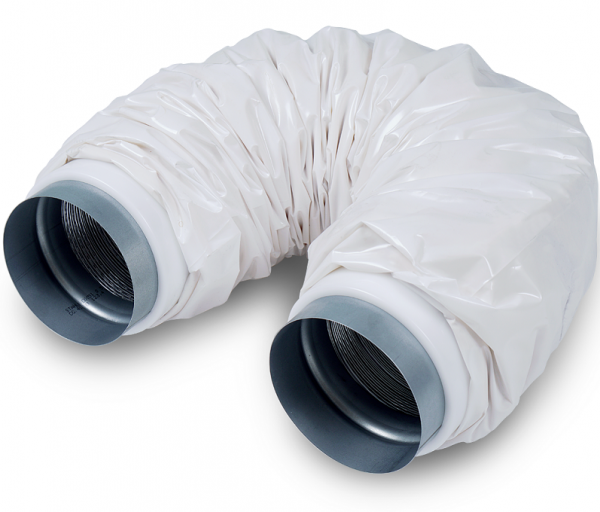

AKU-Comp is a flexible sound damping duct for supply and exhaust air systems in buildings.

Descriptions
Inner pipe: Compact
Insulation thickness: 25mm and 50mm glass wool mat
Outer sleeve: PE-plastic

Area of use
A flexible sound damping duct for supply and exhaust air systems in buildings.

Material
Single layer of profiled aluminium strips. Glass wool and PE-plastic.

Properties
Sound damping, diffusion sealed, flexible, compressible and fire-resistant.

Temperature range
-40°C to +80°C.

Terminal version
Metal sleeves, standard versions.

Dimensions
Diameter 80-315mm, see table below for standard length for relevant diameter.

Aku-Comp with 50mm insulation is supplied in 0,6m and 1,2m lengths and is offered on request.

Ø315mm can be made with grey plastic or alternative aluminium cover.

Bend radius
2-3 x diameter

Fire classification
The glass wool is VIM tested and classed as non-flammable material by the SP Research Institute of Sweden.

dimensions table

Internal dimension (mm) Standard length (m) Insulation thickness (mm)
80 1m 25mm
100 1m 25mm
125 1m 25mm
160 1m 25mm
200 1m 25mm
250* 1m 25mm
315* 1m 25mm

*Not a stock item

Other lengths and 50mm insulation can be quoted on request.
